復卷機系列當前位置:首頁復卷機系列

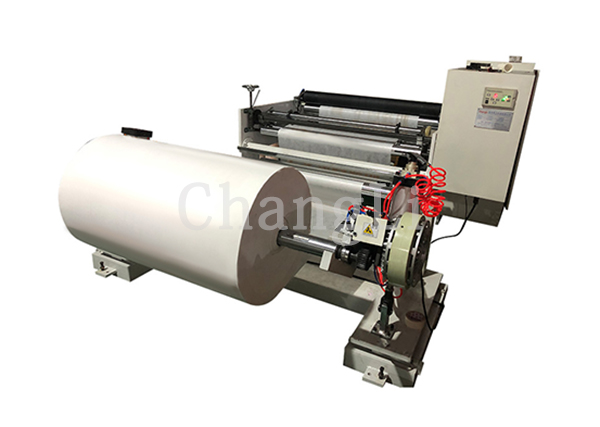

CLFJ-B型自動糾偏修邊復卷機

發布日期:[2019-11-27]     點擊率:


適用范圍 :

該機主要用于各種紙類,無紡布,紙塑復合類,保護膜類等裝飾材料以及包裝材料的修邊復卷。


性能及特點 :

1.本機采用伺服定長送料,在高速運轉中保持高精度。

2.PLC觸摸屏自動計米,米數自動設定。

3.氣動式自動上料,收、放卷軸配氣脹軸。

4.自動割斷、停車時間自由設定,預送料到收卷軸再繼續收料等功能。

5.圓刀修邊分切

Scope of application

This machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.


Performance and characteristics

1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.

2. PLC touch screen automatically counts meters, meters are automatically set.

3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.

4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

5. Round knife trimming and cutting


主要技術參數 : Main Technical Parameters

機型 Model

CLFJ- B1400

CLFJ-B1600

卷材寬度 MAX.Parent Web Width

1300mm

1500mm

放卷直徑 Max.parent Web Diameter

Φ1200mm

Φ1200mm

收卷直徑 Max.Rewinding Diameter

Φ500mm

Φ500mm

速度 Max.Machine Speed

10-180m/min

10-180m/min

定長精度Fixed length accuracy

±5mm


總功率 Total Power

4.5KW

4.5KW

重量 Machine Weight

1300kg

1500kg

外形尺寸 Overall Dimensions

工作電壓 Working Voltage

2602200×1600mm

三相320V50HZ

2800×2500×1600mm

三相380V50HZ

紙芯規格Paper core specification

25mm, 38mm,50mm (or according to your requirement)
